dry-mix shotcrete PZ-5

dry-mix shotcrete PZ-5 dry-mix shotcrete PZ-5 dry-mix shotcrete PZ-5 dry-mix shotcrete PZ-5

Product name : dry-mix shotcrete PZ-5

Item : PZ-5

Details :

PZ-5 Dry-mix shotcrete machine for construction

     Functional Description:

     XuDa PZ-5 shotcrete machine is widely used in mines, tunnels, culverts, subway, hydropower engineering,underground engineering and coal,mines with high methane sprayed concrete  tunnel construction work.



     Main Features:

  • Advantages:This is a high-effective shotcrete machine,which is mainly used for dry-mix, damp-mix shotcreting and steel fiber reinforced shotcreting.
  • Non-adhesion going through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.
  • Four-point clamping device make it easy to adjust the press between sealing plate and rotor disk so as to no air and dust leak and prolong consumption parts life.
  • Thin flow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shocrete quality.

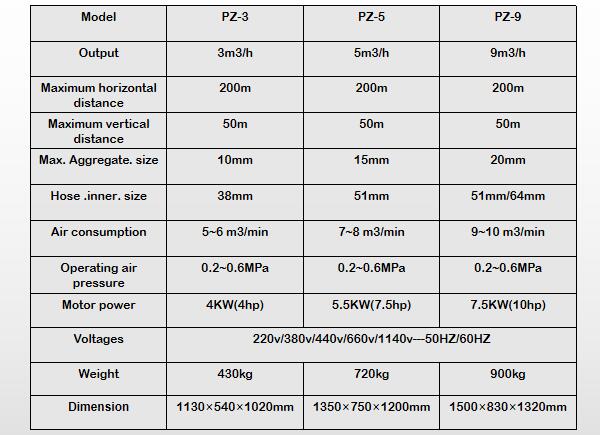

     Technical Data:



 Technical  f

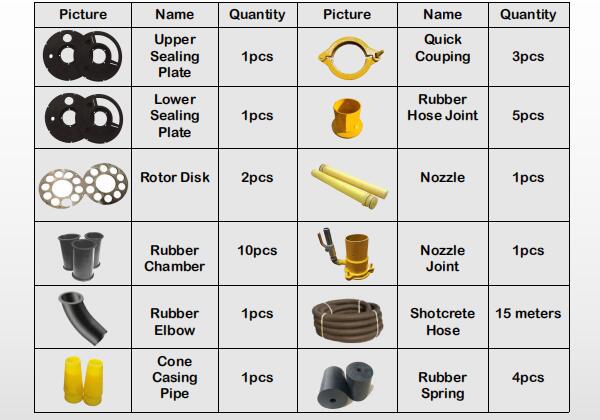

     Spare parts(Free):

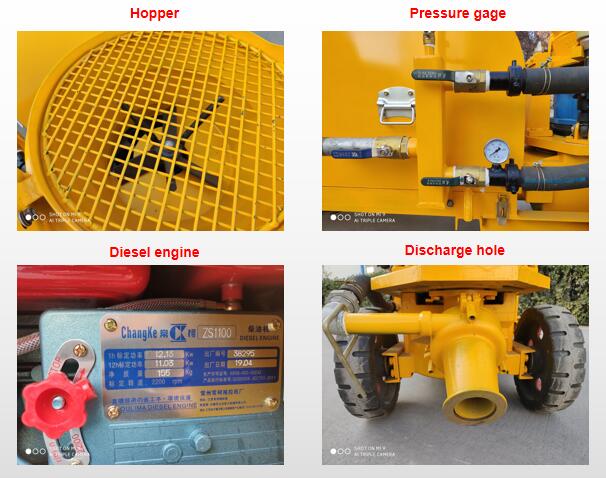

     Details Image:

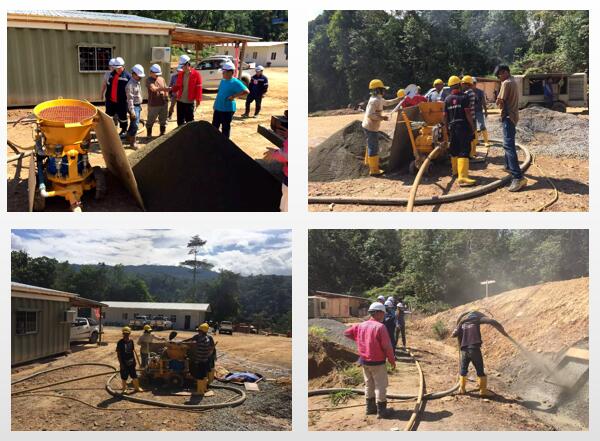

      Working Image

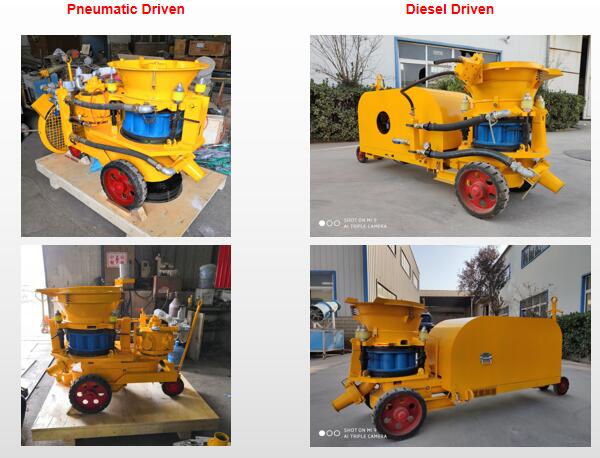

     Customized Driven

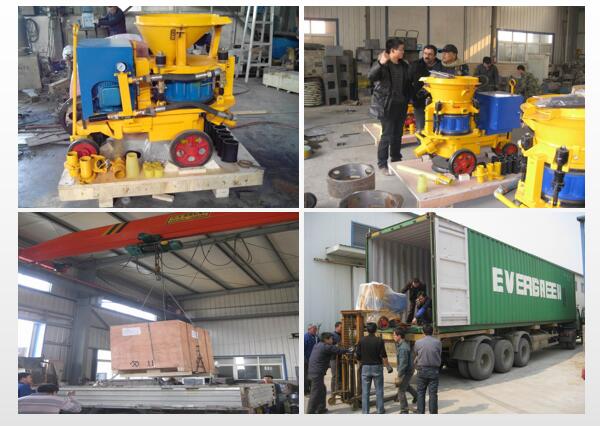

     Packing & Shipping

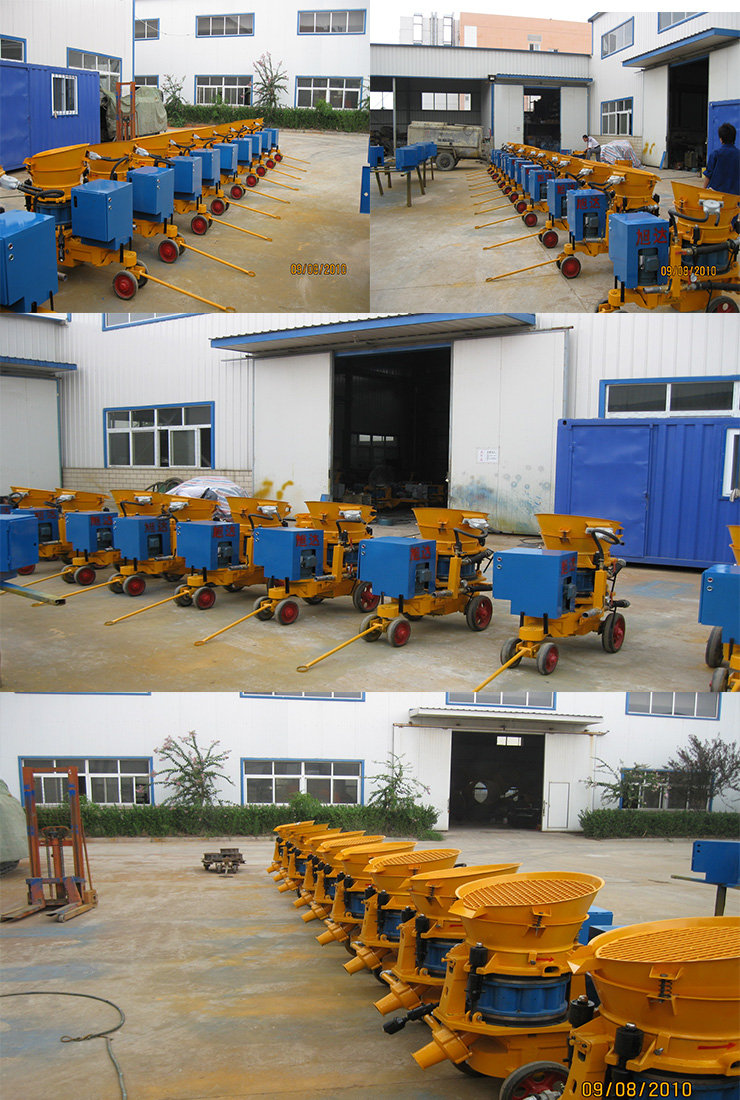

     Warehouse:
