Product name : hydroseeding machine XYP400

Item : XYP400

Details :

1.Soil hydroseeding machine,slope
2.Diesel driven,motor,16.18kw
3.Mixing tank,squeeze hose
4.8.5m3,2400kg
5.Best discount

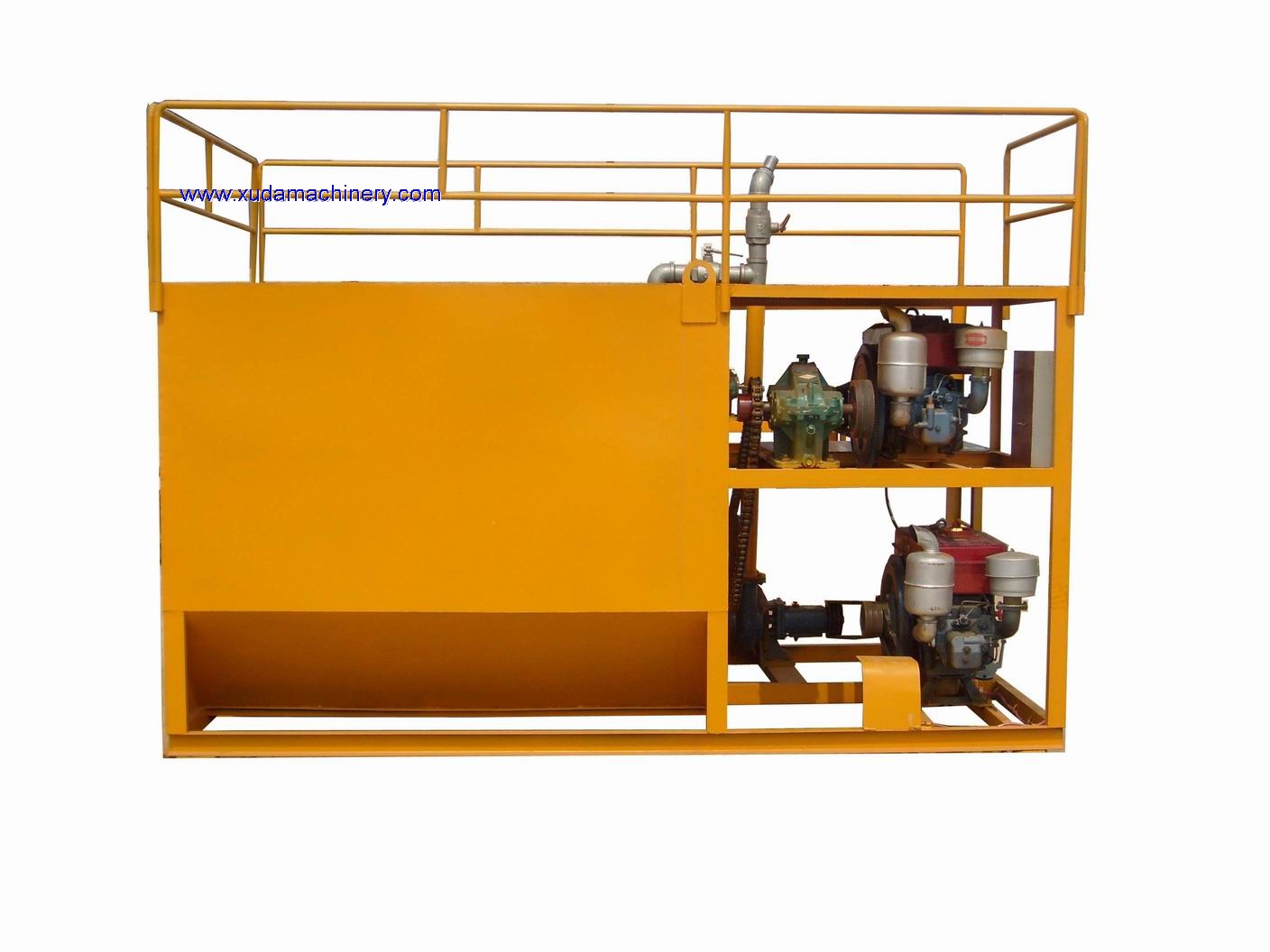

XYP400 Soil hydroseeding machine for protection



Application



XuDa XYP400 hydraulic seeding machine is a new high efficiency, wide adaptability, easy operation and

maintenance of an ideal environment for green machine comes with diesel-powered, centralized electric

control, with XuDa brand seeding machine dedicated pumps, the use of mechanical agitation horizontal

stirred tank slurry mixer to rely on the formation of two-dimensional or three-dimensional circulation flow,

to achieve a mixture of solids and water.



Features



1. Hydraulic seeding machine machine mobility, supporting facilities. Using electric start diesel

    engine operation.



2. Hydraulic seeding machine is equipped with a full-featured machine operating panel, non-slip

    work platform with a removable band closed 85cm high fence to ensure that the operator

    console and aircraft guns and other staff members of the security.



3.Strong force hydraulic seeding machine, head as far as 40m or more, and with site-pipe gun

   and other belt,you can extend the operating range of 200 ~ 300m; plant can be fan-shaped spray

   nozzle close to the fog like smoke, in order to meet the needs of a variety of spray.



4.Extensive use of hydraulic seeding machine, rice can be used to spray plants, grass, trees, flowers,

   crops,seeds, etc., can also be used for irrigation, fertilization, spraying pesticides and other daily

   carem and soil improvement work.



Technical Data

Model of Diesel	Changchai 1115
Power(kw)	16.18
Rotate speed(rpm)	2200
Flow(m3)	50
Max grain size(mm)	3
Maximum range(m)	43
Geometric volume (m3)	5
Work volume (m3)	4
Mixing method	Horizontal shaft forced two-dimensional spiral flow mixing
Shaft speed (rpm)	0--100
Model of Diesel(Mixing system)	Changchai 1110
Power	11.32
Spraying Gun	Pipe gun, the rack gun
Length of pipe(m)	40
Maximum range(m)	43
Nozzle configuration	2’’ 1 long distance, 1 fan
Fence height(m)	0.56
Weight(kg)	2400
Dimension(mm)	3100X1700x1600(LxBxH)
Seeding area/can(m2)	1500
Output(m2/h)	50
